R7 Desktop high-resolution transmitter, decoder, and headphone amplifier all-in-one unit

Building a desktop HiFi system has always been full of compromises. Stacking various brands of equipment together makes it to hard have an elegant and compact setup. For streaming media, such a setup usually brings an unacceptable experience. But now there is a new solution.

The FiiO HiFi desktop experience version 1.0 is now available. With the R7 serving as the centerpiece, and backed by the SP3 speakers and FT3 headphones, You will experience a consistent and highly enjoyable audio and visual device. Welcome to a new era of a slick desktop HiFi experience!

FiiO R7 All-in-One Player, Streamer, and Headphone Amp/DAC Overview Photo

*Does not Include FiiO SP3

Key to a brand new world of HiFi desktop experience

The R7 combines transmitter/decoder/amp/preamp/media playback functions into one unit. Besides numerous connections and expansion capabilities as well as a wide variety of operating modes, It is also capable streams media on a gorgeous portrait screen for an extraordinary user experience. The R7 brings you an attractive-looking, easy-to-use and great- sounding desktop HiFi experience!

Full range of inputs and outputs
Desktop HiFi center All-purpose Desktop HiFi Center

The R7 features connectivity far beyond what one would expect from it, helping you to quickly and easily build a desktop HiFi system with the R7 as the heart of it.

Front:

6.35mm headphone output
4.4mm balanced headphone output
Four-pin XLR balanced headphone output

Rear:

Micro-SD card slots - Stored in a micro-SD card holder, supporting up to 2TB micro-SD cards
RCA line out*2
USB HOST interface - supports external USB devices such as external decoders/hard disks/ keyboards/expansion hubs
Optical input
Optical output
Three-pin XLR balanced line out
Ethernet for wired connection to a network
Type-C port (USB 3.0) - supports data transfer, DP output mode, USB DAC, and USB HOST related functions
WiFi/Bluetooth antenna
AC/DC power switch
DC power input - external DC power supply, 12V-3A
AC power output - AC power used by default, compatible with 100~240V
Coaxial output
Coaxial input

FiiO R7 All-in-One Player, Streamer, and Headphone Amp/DAC Front View

Many outputs With just a turn of a knob

No need to plug and unplug cables, as you can conveniently switch between the PO/LO/PRE OUT/PO+PRE OUT outputs simply by turning a knob.

PO: Only front audio outputs are active
LO: Only rear audio outputs are active (fixed at max output)
PRE OUT: Only rear audio outputs are active (adjustable volume)
PO+PRE OUT (default): both front audio outputs + rear audio outputs (adjustable volume) are active

Multiple modes For more exceptional experiences

Android mode: Enjoy third-party apps, such as major streaming services;
Pure music mode: Exclusive FiiO pure music mode, for even more immersive music;
USB DAC mode: Greatly improve the sound of any computer/phone by connecting to them as a decoder;
Bluetooth receiver mode: Supports LDAC/SBC/AAC, making it easy to listen to excellent sound;
AirPlay receiver mode: Wirelessly connect iPhone/iPad and other iOS devices, giving them a huge boost in sound quality;
Roon Ready mode: Roon Ready certified, giving you an ergonomic player in seconds;
Coaxial/optical decoding mode: By being able to receive optical/ coaxial signals, the R7 turns into a high-performance decoder

FiiO R7 All-in-One Player, Streamer, and Headphone Amp/DAC Lifestyle Photo

Convenient, intuitive

The R7 is unique in that it’s easy to use and offers an astounding number of ways to listen. When listening to music streaming apps, easily switch between headphones and speakers or any other output mode. Conveniently listen to songs stored locally on the R7 – thanks to its built-in storage and micro-SD card support - or receive Bluetooth audio from your phone – with support for high- resolution Bluetooth audio formats. With the R7, you can truly listen any way you want.

R7 supports micro-SD cards up to 2TB and comes with a micro-SD card holder. R7 features Bluetooth 5.0; supports reception of SBC/ AAC/LDAC; supports transmission of SBC/AAC/aptX/ aptX HD/LDAC/LHDC.

R7+headphones
Through either the XLR and 4.4mm balanced outputs or the 6.3mm single-ended output, connect the R7 to the FT3 or other headphones for faithfully reproduced music.

R7+active speakers
Connect the R7 to the SP3 or other speakers via the XLR, RCA single-ended, USB, coaxial or optical ports and enjoy truly immersive three-dimensional sound in a grand soundstage.

R7+headphones+active speakers
The R7 can serve as a convenient hub to connect both speakers and headphones. Turn the knob to conveniently switch between listening devices by changing the output mode. [PO-headphones; PRE OUT-speakers; PO+PRE OUT – headphones + speakers (at the same time)]

Cutting-edge Taking your experience to the next level

For even more ways to listen, you can fully utilize the USB HOST interface to connect external portable drives, the FiiO KB1 keypad and other devices for an even more convenient desktop HiFi experience that is suited specially for you.

R7+Speakers+Headphones+Hub+Portable drive+KB1 keypad
Use the portable drive to store a large amount of your favorite lossless music. Wield the KB1 to conveniently change tracks, adjust the volume, and switch output modes while listening to those tracks on the portable drive.

FiiO R7 All-in-One Player, Streamer, and Headphone Amp/DAC Technology

Remote control Letting you listen without abandon

Want to listen to your music without having to get up? You can go with the FiiO Music app or a Bluetooth remote control, allowing you to control your music from a distance and conveniently handle various operations with ease. Be truly unshackled when listening. *In the future, FiiO will launch a customizable universal Bluetooth remote control.

A complete HiFi desktop setup！

With the help of the KB1 keypad and the PL50 linear power supply, you can unleash the R7’s full potential in experiencing a truly enthusiast-level complete FiiO desktop HiFi system!

R7+Speakers+Headphones+Hub+Portable drive +KB1 keypad+NAS+PL50 linear power supply
Time to be your own DJ! The R7 can act as your control hub for accessing your music, when connected to a NAS and playing music through DLNA. The R7 is Roon Ready certified, allowing you to access music from a ROON CORE source such as a NAS or a computer. And if that is not enough, the R7 itself can act as a network music server thanks to being compatible with the DLNA transmission protocols. Through DLNA, on another device one can access the music on the R7’s internal storage, micro-SD cards, and even tracks on a connected external portable drive.

FiiO R7 All-in-One Player, Streamer, and Headphone Amp/DAC Roon Ready

FiiO HiFi desktop experience version 1.0

Whether you are a beginner or a seasoned veteran audiophile, you can easily get started and build a desktop HiFi setup around the R7. You can also synergistically further pair the R7 with other FiiO products to further enhance your listening experience, opening the door to a totally new and refreshing desktop HiFi experience.

More power All in the pursuit of great sound

4th-gen FPGA with phase-locked loop clock tech+2 femtosecond crystal oscillators

Allowing for a high-precision, low-jitter unified clock source for cleaner and more stable audio.

Specially-optimized audio circuit design

The R7 utilizes an ES9068AS DAC in conjunction with a pair of THX AAA 788+ headphone amplifiers. In addition, inside the R7 are other premium components, such as four Panasonic PPS film capacitors. No expense was spared in using superior components to ensure the R7 faithfully reproduces your audio.

5 gain levels, 3.6W high output power

The R7 has five gain levels: low/medium/high/over-ear headphone/ enhanced over-ear headphone mode. Under a 32Ω load using enhanced over-ear headphone mode, the R7 is capable of outputting up to 3.6W, more than enough to power low- and high-impedance headphones.

FiiO R7 All-in-One Player, Streamer, and Headphone Amp/DAC Outputs

Electricity is the root of great sound

DC/AC dual power supply design

Inside the R7 is a 30W switching power supply. The AC input circuit employs filtering and purification with a large capacity choke and dedicated high-voltage capacitors. The DC input circuit is of a ±12V high-voltage power supply design. Both power circuits contribute to the robustness of the power supply system, to better give that dynamic sound to your music. The R7 can also be used with external DC power supplies, such as the FiiO PL50 linear power supply or other power supplies to give your sound an even purer, blacker background to truly make the musical details pop. *Only 12V-3A external DC power supplies are supported

Premium components

The 12 470uF tantalum capacitors help to regulate and purify power in the power supply and thus further reduce power supply noise. In addition, the specially-designed metal cover locks the transformer in place to the main power supply board, reducing the jitter of the power supply and resulting in more stable power.

Power supply design with numerous LDOs

Thanks to power stabilization and filtering in part due to each stage of the audio circuit employing ultra-low-noise LDOs for voltage regulation, the R7 is continuously fed with stable, clean power.

A simple solution For many demanding needs

The R7 is capable of many tasks, being able to act as a transmitter/ streaming media player/decoder/amplifier/preamp. It effectively consolidates into a compact package what used to require many different devices to do. One simple device can now meet all of your demanding listening needs. The R7 is also highly scalable and can be easily connected to many other external devices, inviting you to further explore the limits of the R7’s truly mind-boggling functionality.

Bold design Exploring new form factors

3 years ago, we already started thinking about how to make a streaming media player that is ideally suited for even the smallest desktop spaces. We explored numerous form factors for a year, such as having a horizontal, flip, or even rotating screen. For each form factor, we built a specifically optimized and handcrafted prototype to truly and fully explore the advantages and disadvantages. After much real-world testing and many lessons learned, we boldly decided that the R7 would adopt a portrait-oriented display, fit within an elegant and compact package. With the R7, we wish to herald a new era in the desktop HiFi experience.

FiiO R7 All-in-One Player, Streamer, and Headphone Amp/DAC Design

Portrait-oriented screen New innovative heights

Thanks to the 5.0-inch high-definition display and Android operating system, you can enjoyably experience major streaming and other third-party apps like never before on the R7. Satisfy your media consumption desires with the R7.

Handsome design Truly showing the beauty of HiFi

With the suave, square R7 on your desk, your desktop HiFi setup comes to life;
The gorgeous portrait display also helps to save space;
Thanks to the included protective covers, you don’t have to com- promise on maintaining good looks on your great-sounding unit;
The side honeycomb vents serve as both heat dissipators and as a futuristic touch;
A recessed rear panel means more elegant wire connections and less clutter;
The seamless WiFi/Bluetooth antenna packs much capability in a simple square inch;
The customizable RGB lights give your desktop setup some extra personality.

FiiO R7 All-in-One Player, Streamer, and Headphone Amp/DAC On Desk

Every part Thoughtfully considered

Qualcomm Snapdragon 660
Robust "core"
Silky smooth experience

Android 10
Install a wide variety of apps, Just like any smartphone

Ethernet port
No more interference on WiFi, Enjoy a fast and stable connection

Personalized screensaver
Analog clock, digital clock, flying goat

Dual USB ports
For even more functionality

5G+2.4G
Faster and more stable connections

RGB lights
Customizable effects, brightness, and to indicate unit status

Touch buttons
Three customizable touch button

Exclusive DP mode
Connect to an external display for more immersive music videos and movies

Digital jukebox
Connect to an external decoder via optical/coaxial/USB outputs

Abundant accessories

Power cord (US)*1
USB data cable*1
Flat base*1
Angled base*1
Quick start guide*1
Dustproof plug*2
Doublesided tape for base*4
Warranty card*1
MicroSD card holder*1 (inside the unit)
Fuse*1+6.35mm adapter*1

Specifications

Name / model	R7	Hardware solution	Soc: Snapdragon 660, DAC: ES9068AS, AMP: THX AAA-788+ * 2, USB: Snapdragon 660
Working mode	Android mode / Pure music mode / USB DAC mode / Bluetooth receiving mode / AirPlay mode / COAX mode / OPT mode / Roon Ready
Color	black	Weight	≈1282g
Dimension	≈110x134x160mm	Volume control	Knob
Screen	4.97 inches (720 * 1280) full-fit screen	Internal storage / Free space (ROM)	64GB / ≈46GB
RAM	4GB	Gain	Ultra high / Super high / High / Medium / Low
Memory card	Single SD card expansion, theoretically supports up to 2TB	Recommended headphone impedance	PO: 16 ~ 150Ω
Channel balance	L20~ R20 (0.5dB per level)	Recommended headphone impedance	BAL: 16 ~ 300Ω
Buttons and ports
Button	Volume knob (it has button's function)1 Output selection knob (similar to button's function)1	USB	Type-C (USB3.0) * 1 USB A (USB2.0) * 1 (data transfer)
DC power in port	Φ 6.2mm DC socket	Toggle switch	DC / AC switch
Balanced output ports	Standard 4.4mm * 1 4-cores XLR * 1	Phone out port	Standard 6.35mm
Balanced line out ports	3-cores XLR * 2	Single-ended line out ports	RCA* 2
OPT input port	Standard TOSLINK	COAX input port	RCA
OPT output port	Standard TOSLINK	COAX output port	RCA
Network port	100M Ethernet port
Features
WiFi	2.4GHz / 5GHz, DLNA, AirPlay, WiFi music transmission,Roon Ready etc.	Bluetooth Emission (5.0)	AAC / SBC / aptX / aptX HD / LDAC / LHDC
Bluetooth receiving (5.0)	SBC / AAC / LDAC	FiiO Link	WiFi and Bluetooth control for Android, WiFi control for iOS.
MQA	8x decoding	All to DSD	√
Max sampling rates	USB DAC: 384kHz / 32bit; DSD256 (Native)	Bluetooth codec indicator (knob light)	Blue: SBC
	Local decoding: 384kHz / 32bit; DSD256 (Native)		Cyan: AAC
	USB Audio：768kHz / 32bit；DSD512（DoP / D2P / Native）		Yellow: aptX HD
	COAX IN: 192kHz / 24bit		White: LDAC
	OPT IN: 96kHz / 24bit		Orange: LHDC
	COAX OUT: 384kHz / 24bit; DSD128 (DOP)
	OPT OUT: 192kHz / 24bit
EQ	10-segment dynamic EQ (±12dB), 8 preset EQ, custom EQ,PEQ supported.	Sampling rate indicator (knob light)	Blue: lossy
Operation modes	Support gesture operation, two-button navigation, three-button navigation		Cyan: SQ
Screen saver	√		Yellow: HR
Firmware upgrade	√ Local upgrade, OTA upgrade		Green: DSD
Double-click to wake up	√		Magenta: MQA
Power parameters
Power supply	DC 12V / 3A OR AC 100-240V~ 50 / 60Hz
Audio parameters
Phone out performance parameters (6.35mm, USB DAC / OPT / COAX, Ultra high)
Output power	L+R≥1850mW+1850mW (16Ω，THD+N＜1%)	Output impedance	< 0.5Ω
	L+R≥1250mW+1250mW (32Ω，THD+N＜1%)	Crosstalk	≥77dB
	L+R≥160mW+160mW (300Ω，THD+N＜1%）	Peak voltage	18Vp-p
SNR	≥ 124dB (dbA)	THD+N	< 0.0005% (1kHz / -8dB@32 Ω)
Frequency response	5Hz~ 50kHz: attenuation < 1dB	Noise floor	< 4uV (dbA)
Frequency response	20Hz~ 20KHz: attenuation < 0.3dB
Phone out performance parameters (6.35mm, USB DAC / OPT / COAX, Super high)
Output power	L+R≥1450mW +1450mW(16Ω，THD+N＜1%)	Output impedance	< 0.4Ω
	L+R≥750mW +750mW(32Ω，THD+N＜1%)	Crosstalk	≥73dB
	L+R≥80mW+80mW (300Ω，THD+N＜1%）	Peak voltage	14Vp-p
SNR	≥ 124dB (dbA)	THD+N	< 0.0005% (1kHz / -6dB@32 Ω)
Frequency response	20Hz~ 80kHz: attenuation < 1dB	Noise floor	< 4uV (dbA)
Frequency response	20Hz~ 20KHz: attenuation < 0.3dB
Line out performance parameters (RCA, USB DAC / OPT / COAX)
THD+N	＜0.0005%(1kHz / -0dB@10KΩ)	SNR	≥ 118.5dB (dbA)
Crosstalk	≥112dB	Noise floor	< 2.7uV (dbA)
Frequency response	5Hz~ 80kHz: attenuation < 2dB	Line out level	2.2Vrms
Frequency response	20Hz~ 20KHz: attenuation < 0.1dB
Balanced phone out performance parameters (XLR4 / 4.4mm, USB DAC / OPT / COAX, Ultra high)
Output power	L+R≥1000mW+1000mW (16Ω，THD+N＜1%)	Output impedance	< 0.5Ω
	L+R≥3650mW+3650mW (32Ω，THD+N＜1%)	Crosstalk	≥116dB
	L+R≥630mW+630mW (300Ω，THD+N＜1%）	Peak voltage	39Vp-p
SNR	≥ 122dB (dbA)	THD+N	< 0.0005% (1kHz / -8dB@32 Ω)
Frequency response	20Hz~ 50kHz: attenuation < 2dB	Noise floor	< 7.5uV (dbA)
Frequency response	20Hz~ 20KHz: attenuation < 0.3dB
Balanced phone out performance parameters (XLR4 / 4.4mm, USB DAC / OPT / COAX, Super high)
Output power	L+R≥800mW+800mW (16Ω，THD+N＜1%)	Output impedance	< 0.5Ω
	L+R≥3000mW +3000mW(32Ω，THD+N＜1%)	Crosstalk	≥116dB
	L+R≥320mW+320mW (300Ω，THD+N＜1%）	Peak voltage	27.7Vp-p
SNR	≥ 122dB (dbA)	THD+N	< 0.00048% (1kHz / -6dB@32 Ω)
Frequency response	5Hz~ 80kHz: attenuation < 2dB	Noise floor	< 7.5uV (dbA)
Frequency response	20Hz~ 20KHz: attenuation < 0.3dB
Balanced line out performance parameters (XLR3, USB DAC / OPT / COAX)
THD+N	＜0.0005%(1kHz / 0dB@10KΩ)	SNR	≥ 125dB (dbA)
Crosstalk	≥121dB	Noise floor	< 2.5uV (dbA)
Frequency response	20Hz~ 50kHz: attenuation < 2dB	Line out level	4.5Vrms
Frequency response	20Hz~ 20KHz: attenuation < 0.1dB

Best Selling

Final Audio Clear/Red Silicon Type E Tips kit with Case and Nozzle Adapter

Final Audio Black+Black/Red Silicon Type E Tips kit with Case and Nozzle Adapter

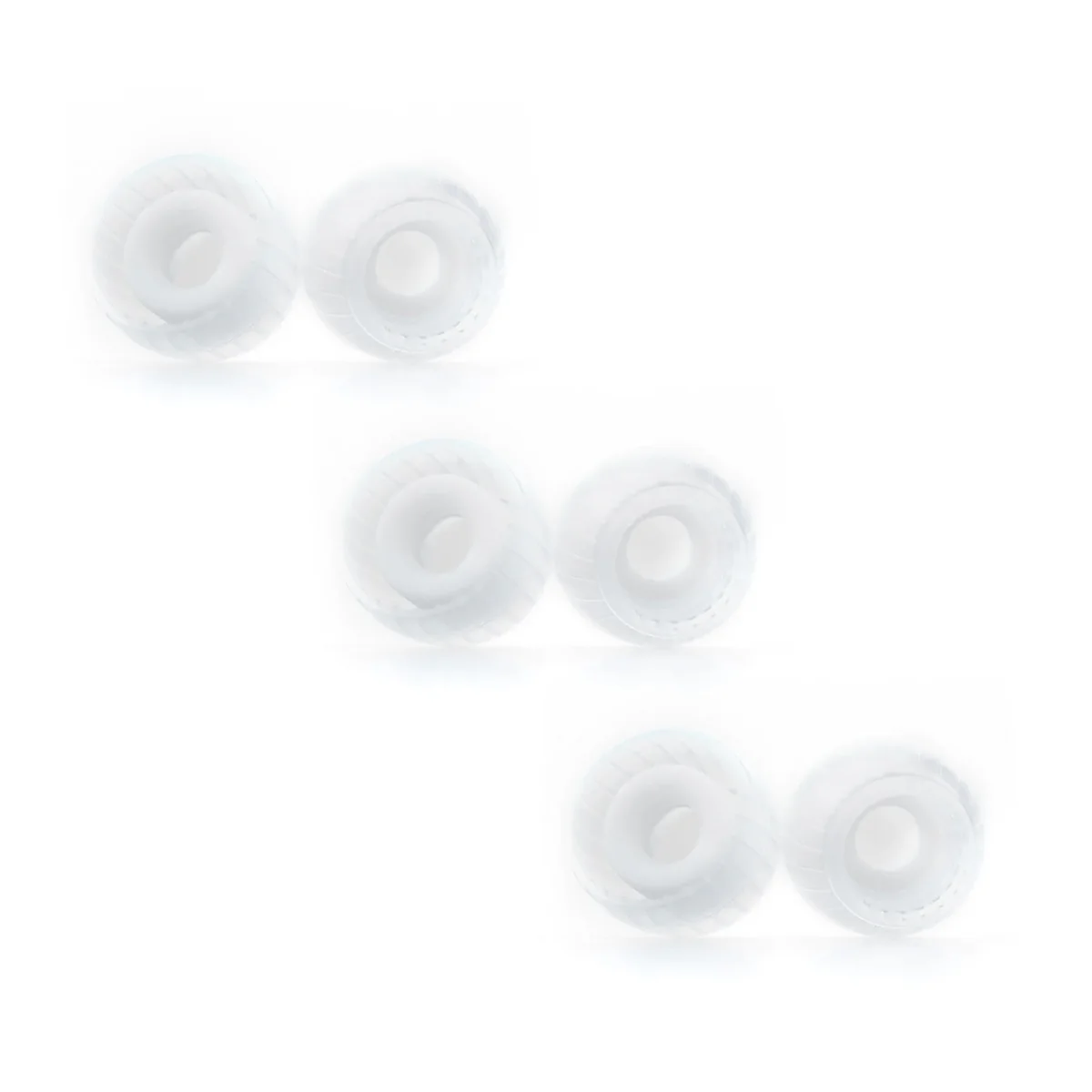

MoonDrop Spring Tips Soft Silicone Eartips

FiiO R7 All-in-One Player, Streamer, and Headphone Amp/DAC

iBasso DC-Elite Portable DAC/Amp

iBasso DX260 Digital Audio Player

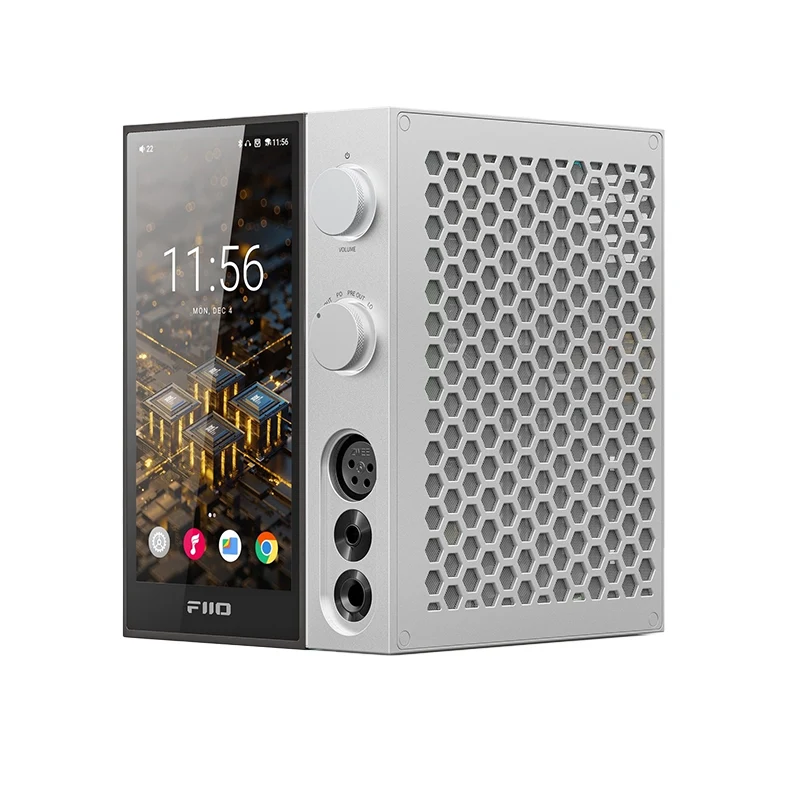

FiiO R9 Flagship All-in-One Player, Streamer, and Headphone Amp/DAC
